Encapsulation
of Components in a Replaceable-Container
|
|
The
“Component Factory” (or
CF) may be designed using Object-Oriented programming (OOP) to generate the
Application-Component ('AC'). As shown in the Fig below, the CF may use reusable
(e.g. COTS: ”Commercial Off The Shelf”) or pre-built GUI-Classes to present
parts of the AC; and other objects, such as, DB-objects or EJB-objects to get
the necessary data to generate custom AC for each user.
|
|

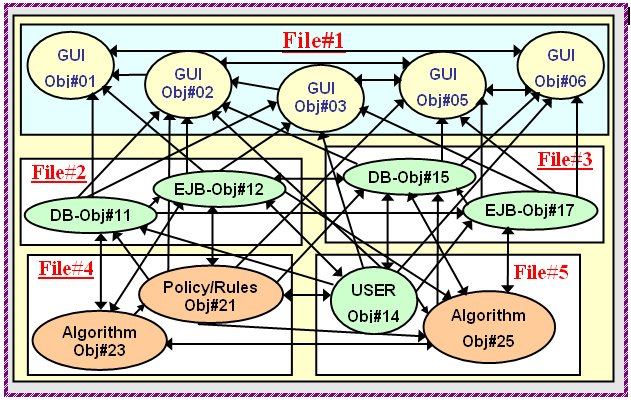

The CF tightly couples many Objects
to build each Custom-AC as shown in the Fig below. The arrows
shows the dependencies between the Objects. Please remember, one may
need to write several dozens lines of code to initialize and
customize each reusable GUI Class such as Chart or graph (for
example, to input not only Data but also Style-data such as fonts and
colors). So each arrow of dependency may represent dozens of function
calls. The CF may get necessary data from other sources such as configuration
files to customize the component (e.g. style, national language strings).
Furthermore, the data-pieces obtained from EJB or DB-Objects cannot be readily
input to GUI Components, since often need to apply application-logic such as business
rules/policies, user-preferences, algorithms or irritate over large data-sets to
calculate summaries such as medians/average etc. Don't you agree all this code
is essential, which force the developers to tightly-couple the Objects and
Logics?
|
|
|
|
If I like to remove the "Whole Component", why should I
understand the internal Spaghetti-code? The
interactions between the Objects and custom application-logic is essential and may not be
spaghetti-code yet. But it will become spaghetti-code, once all the code-chunks are
scattered and buried in few hundred thousand lines of the total
application-code (Thereafter few inevitable user requested updates/bug-fixes).
|
In our CBSDF: It is possible to
prevent the code from becoming spaghetti-code by encapsulating
it in a replaceable-container
(i.e. AC/CF indirection) to remove/replace the 'Whole Component'.
|
|
In the
OOP: The developers are often forced to comprehend the spaghetti-code,
since it is NOT
possible to encapsulate the Objects and interaction in a 'replaceable-container'. |
|
|
In the OOP, most objects are treated as components. However, CBSDF treats many objects as
tools or ingredients
to make ideal software component
(Important definition). The reusable
GUI-API objects, data
objects, user-object and plumbing or house keeping Objects
are just used to build a fully functional AC (an ready-to-assemble
easily replaceable Lego-block). The CBSDF
clearly distinguishes between the manufacturing
and the custom built AC (a fully manufactured ideal component),
which has simple “loosely coupled” service-interfaces
to get services at run-time.
Most of the Objects (e.g. forging
molds, drills or lathe machine) used to make each part stays at the
manufacturing floor and would never end up in the automobile-hood.
In the traditional OOP, however, all this tangled Object interactions
(manufacturing process shown at top-part in the above Fig) for all
the ACs end up in the code for the application (e.g. VisualBasic,
Java/Swing or VC++).
|
|
CF physically encapsulated all this messy tightly-coupled interactions in a
Java-class/Object and CF spits out an AC. This AC (a Lego-block) can be thrown in to the
webpage/application file and readily access its services. Each AC may need 5 to 7
lines of simple code to communicate (i.e. to access its services). The class code of the CF
can be independent and may be used as a building block in larger CF, and so on.
|
|
On the other hand, the OOP treats all the manufacturing-interactions
(that are shown using arrows on the top part of above Fig, inside the
CF) between the Objects "as integration code".
The CBSDF partitions the 'integration-code' into two types:
-
Object-integration code: These
tightly-coupled Object interactions to manufacture each of the 'loosely
coupled' component may
be about 50% of the total CF code. Hence the effective spaghetti integration code in the
large OOP applications is nearly 50% of the total application code. This
manufacturing need to be performed only one time, during the initialization of
the application.
-
Component-integration code
: Average code needed to access the services of each
AC is about 1% (i.e. about 5 lines to loosely couple each AC) at
run-time.
Hence the effective Component-integration code is about 1% of the
code (if the application is created by hierarchically assembling loosely-coupled replaceable parts).
Please notice the red-arrows in the figure below.
In
CBSDF, this 1% code is the entire link each AC (or
CF) has with rest of the Application. Deleting this
1% code should effectively removes the whole AC/CF from the Application (or separates
the CF to refine/update it independently).
|
|
|
|
The Object-integration code is encapsulated in a smaller
easy to separate CF-class. If we need to redesign the AC, we need to comprehend the few lines of
Object-integration code within the CF-Class (independently in full isolation).
Hence, the CBSDF breaks the application into many easy
to plug-in ACs, wherein the ACs and their loosely coupled service-oriented interfaces can cut the component replacement complexity for
large components by about 95% (By cutting the real-coupling
or "effective-integration code" from about 50% to about 1% of the
total application code).
In the CBSDF, one don't need to worry about the Object-integration
shown in the top-part of the first figure to replace the part. In the OOP, for large
components, it is often NOT possible to encapsulate them in a replaceable-container
(e.g. in a Class-definition or File). So developers are forced to scatter the
Objects and chunks of application-logic across many
files and mix with the code-chunks (i.e. references to the Objects and application-logic) for other ACs. Hence, he must
remove multiple Objects and code-chucks for application-logic from many files to remove the component. To remove each of
the Objects, he must comprehend all the Object's dependencies
(as explained in Fig#4 and
Fig#5 shown in the webpage).
|
|
Note:
Please visualize this in the context of a very large application (having
hundreds of such large components) and container
components having few
subcomponents (e.g. AC-05 or AC-07 in Fig#3). Is it hard to see the value, if one could remove any component by removing
about 5 lines. This would be
valuable tool, since even a new recruits could safely interchange any large
components (which is practically impossible today). Ask a friend to randomly
pick large components in your GUI application, and see how many of them could be
replaced by replacing 9 lines or less?
Furthermore, automated CASE-tools can detect any broken dependencies
(i.e. service-interfaces between the components).
Important
Note: One must study the manufacturing
history to appreciate the implications of invention of “loosely coupled
interchangeable software parts”. One must comprehend, how the invention
of interchangeable parts led to the invention of moving assembly line and
together responsible for increasing the manufacturing productivity over 100
folds. If you cannot comprehend how the invention of "interchangeable
parts" shaped the manufacturing, all our discussion of how to create "loosely
coupled software Lego-blocks" and automated mechanisms
to assemble them might feel like boring lessons and useless exercise.
|
|
The CBSDF introduces a new concept of AC (e.g. loosely coupled
components), which neither exists nor makes much difference
in the traditional OOP process (since the Objects and
their interactions cannot be encapsulated in a replaceable container).
For example, in the OOP, some of the Objects must be included in a code-chunk or file,
while other objects (e.g. DB, EJB etc.) and the code for the callbacks of the GUI,
cannot be keep in the same location or file. This forces developers to split
the whole code for each AC into many code-chunks, and scatter them in many
files/locations.
|
|
|
|
These code-chunks (i.e. references to the
Objects & application-logic) are spread across many files
and mixed with the code-chunks for the other ACs, which makes
it impractical to track all the code-chunks. So, it is impossible to create and maintain each
AC as an independent replaceable module in the OOP. An Ideal component
framework must provide a way to build each component
independently at a different location from the assembly
line and integrate or just “plug-in” the
AC by just using its simple service interfaces.
|
|
Each GUI Component is placed at Proper Location |
|
Arrows
Represent Loosely Coupled Service Interfaces
If the Loosely Coupled Components (e.g. AC01 to AC05) need to collaborate with other,
they interact with each other by requesting each other services at run-time
(Note: Each component is fully created finished-part
and could run independently)
|
New
kind of perfect Loosely Coupled Components
(Click on above link
to learn about the new kind of Raju's Components)
Each
AC is an independently executable module (or cohesive code block). It requires
just 2 lines to include each CF/AC (Click here for
example). A container
component is created by literally assembling many ACs. If any two
ACs needs to collaborate with each other, on average they need 3 to 5 more lines
of communication code (e.g. to loosely couple service-provider and
service-consumer). The solid-arrows in the above figure shows the
dependencies (or loose couplings) between the ACs.
|
|
|
Define
What Constitutes a Real Software Component (Click
here)
|
|
An Example
Please consider the Battery in the
Automobile: The battery maker encapsulates all the manufacturing process, internal
interactions and functional complexity in a 'Replaceable-Container'. Notice the separation of
manufacturing and services. It allows the automakers/mechanics to only concern about, how to access its services (e.g.
connect two wires to get 12VDC or to recharge). The
mechanic don’t care about the internal chemical interactions between led & acid
(e.g. Objects) to produce the
power (or to store the power). This separation also allow the battery-maker to
preserve his freedom to innovate, to refine the
design and manufacturing process to improve the performance (e.g. lifetime and
quality of services) and reduce his making costs.
The design of the “CF” in-effect emulates this. The
CF-Class hides the manufacturing and internal functional complexity in an independent
easy-to-replace module (e.g. Java class). This allow any one to use the
intelligent-CF-Class and get a custom-built easy to assemble and replaceable AC
at real-time. If one uses this component as a subcomponent in a larger component, all he needs to concern about is the simple loosely-coupled interfaces (e.g. to get its services) to couple/integrate the AC and not much else.
The component Factory framework is nothing but, building
smaller and independent CFs/ACs (Replaceable Containers); and assemble such components hierarchically to build larger and larger
ACs, and hence WebPages (or Screens) and finally the Application (a set of Screens/Windows).
Please click here and here
to understand the CBSDF processes. Please click here
and here
for sample CFs.
|
|
|
|
|
|
|
